Jiugu Elevator

Advantage:

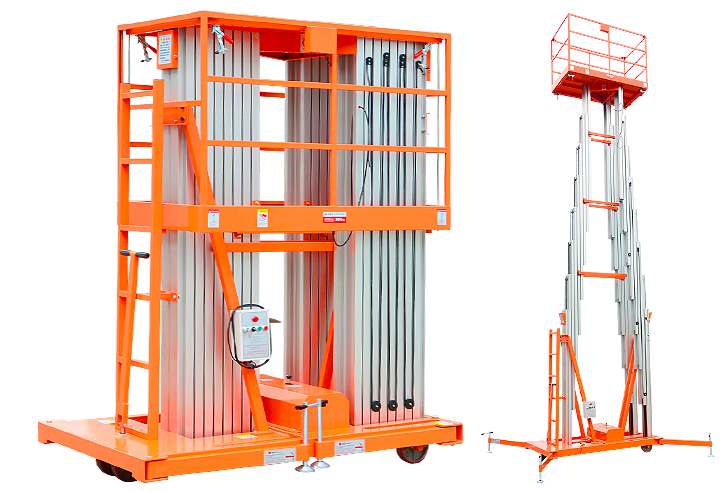

1. The mast high-altitude operation platform adopts the form of simultaneous lifting and lowering of the mast, with stronger stability during lifting and lowering. The mast column material is made of high-strength aviation aluminum to ensure the safety of operators.

2. The independently developed integrated slider is used between each mast column, which reduces the dynamic clearance between the mast columns and ensures smoother and more reliable operation during lifting, far superior to ordinary independent guide wheel support structures.

3. The chassis adopts a four-wheel rolling chassis, making it easy to walk even in corners, narrow and multi obstacle areas.

4. The guardrail is installed by lifting and lowering, with a sliding strip in the middle for easy access by personnel.

5. The chassis is equipped with a level gauge, which easily ensures the horizontal position of the machine. The suction cup type leveling support legs, combined with the level indicator, always provide a solid and stable ground support for the platform, even on slightly uneven surfaces.

6. Adopting Chint dual control switches, the platform can be operated independently both up and down.

7. There is an emergency stop switch on the platform to prevent equipment failure and ensure personnel safety.

8. There is an emergency descent device below the platform, which can ensure a slow descent even if the platform unexpectedly loses power, relieving the operator's worries and ensuring safe use.

9. The platform adopts high-pressure steel wire oil pipes, all of which meet the internationally recognized ISO8434-1 standard. Its compressive strength is much greater than that of the hydraulic system pressure, ensuring the safety of the oil pipes; At the same time, the hydraulic system is equipped with anti pipeline rupture valves, which can prevent the platform from rapidly descending even if the pipeline accidentally ruptures.

10. Proportional control, using a proportional electro-hydraulic controllable system, can freely adjust the platform's rise and fall.

11. 115% of the load-bearing design requires overload limits, and the chain is galvanized for greater durability and product safety.

12. The equipment is equipped with leakage protection switches, emergency stop switches, extreme electrical limit switches, etc. The button boxes are all designed to be waterproof.

13. The equipment control voltage is 24V DC, effectively ensuring personal safety.

14. The lifting drive chain is a double chain structure, using industrial plate chains with high load-bearing capacity and safety factor.

15. The hydraulic power unit adopts an integral pump station, which is compact in structure and reliable in performance; The hydraulic system is equipped with an emergency descent function to prevent power outages and unexpected situations, and the emergency operation is extremely simple.

16. The compressive strength of high-pressure steel wire oil pipes is much greater than that of hydraulic system pressure, ensuring the safety of the oil pipes

17. The suction cup type leveling support legs, combined with the level indicator, always provide a solid and stable ground support for the platform.

18. All products have been insured for product quality liability by China United Property Company.

*The factory reserves the right to modify materials and technical parameters. Please confirm before placing an order.
