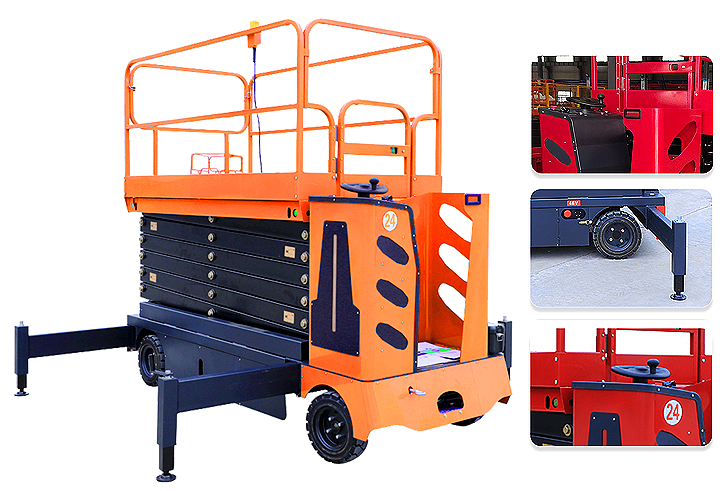

Steering wheel scissor lift platformCategory:All electric lifting platform

Product Introduction:The chassis is made of solid tires, which can quickly pass on the ground and roads. The arm base is made of Q345 manganese steel with a rectangular tube of 120mm * 80mm * 4.5mm material, and is matched with hydraulic cyl
.Rated load: 500kg
.Platform height: 7-13m
.Working height: 8.7-14.7m (including human height)

Product description



Model specificationsSJZ0.5-7SJZ0.5-7SJZ0.5-7SJZ0.5-7
Platform rated load kg500500500
300
Maximum platform height mm700090001100012850
Minimum platform height mm1120124013701495
Work platform size mm2150 X1140
Leg extension size mm2130 X 1890
Lifting motor v/Kw48/2.2
Drive motorv/Kw48/2.5
Voltage V48
Driving speed km/h4-6
Maximum Climbing Capacity%10-15
Battery v/Ah12/70x4 pieces
Charger v/AOct-48
Overall length mm2760
276027602760
Overall width mm1295129512951295
Overall height mm2120224023702495
Total weight kg1580183019802200

*The factory reserves the right to modify the materials and technical parameters. Please confirm before placing an order.
