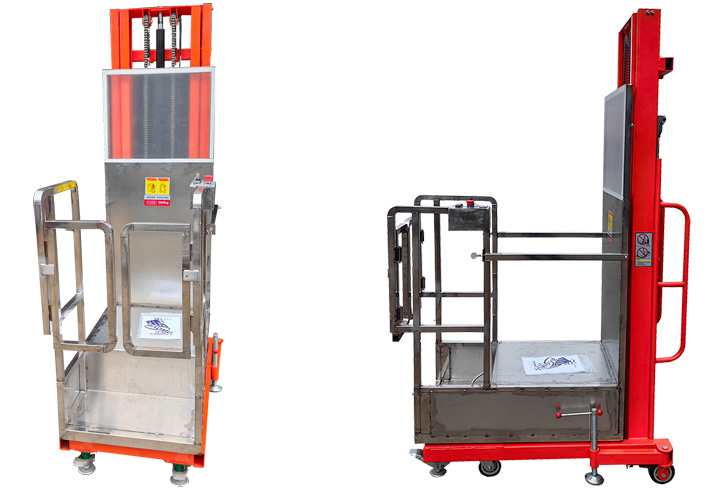

Stainless steel has good corrosion resistance, environmental protection, dust prevention, and anti-static properties. There are single mast stainless steel lifting platforms and reclaimer stainless steel platforms to choose from.
| Model specifications | SEP2-2.7 | SEP2-3.3 | SEP2-4.0 | SEP2-4.5 |
| Maximum platform height (H) mm | 2720 | 3300 | 4000 | 4500 |
| Maximum height of the machine(H1)mm | 4020 | 4900 | 5360 | 6050 |
| Distance between the base and the ground(H2)mm | 30 | 30 | 30 | 30 |
| Platform rated load mm | 200 | 200 | 200 | 200 |
| Platform size(1×m)mm | 600*640 | 600*640 | 600*640 | 600*640 |
| Lifting motor v/kw | 12/1.6 | 12/1.6 | 12/1.6 | 12/1.6 |
| Battery v/Ah | 12/120 | 12/120 | 12/120 | 12/120 |
| Chargerv/A | 12/15 | 12/15 | 12/15 | 12/15 |
| Overall length(A)mm | 1300 | 1300 | 1320 | 1320 |
| Overall width(B)mm | 850 | 850 | 850 | 850 |
| Overall height(C)mm | 1760 | 2040 | 1830 | 2000 |
| Overall weightkg | 270 | 320 | 380 | 420 |
*The factory reserves the right to modify the materials and technical parameters. Please confirm before placing an order.
