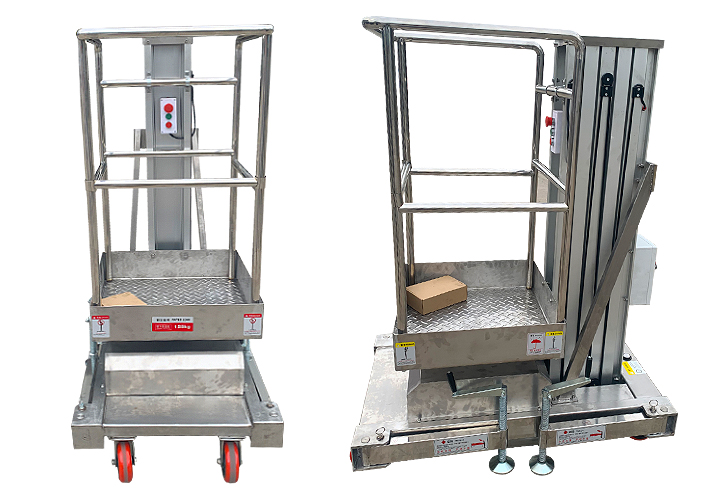

The stainless steel lifting platform is constructed with stainless steel materials, primarily utilizing stainless steel square tubes and stainless steel plates. The legs of the lifting platform can be adjusted up and down to accommodate uneven ground. It is primarily used in dust-proof and anti-corrosion work environments such as chemical plants and food factories.
| Model | GTWY4-100 | GTWY5-100 | GTWY6-100 | GTWY8-100 | GTWY9-100 | GTWY10-100 | |
| Maximum height of platform (mm) | 4000 | 5000 | 6000 | 8000 | 9000 | 10000 | |
| Working height mm | 5700 | 6700 | 7700 | 9700 | 10700 | 11700 | |
| Distance from base to ground (mm) | 80 | 80 | 80 | 80 | 80 | 80 | |
| Rated load of platform (kg) | 125-150 | 125-150 | 125-150 | 125-150 | 125 | 125 | |
| Work platform size (mm) | 640×580 | ||||||
| Support leg unfolding size (mm) | 1600×1700 | 1650×1750 | 1650×1750 | 1650×1750 | 1780×1900 | 2110×1920 | |
| Power supply | Communication AC V | AC220/50HZ | |||||
| Direct current DC V | It can be equipped with a 12V or 24V battery | ||||||
| Storage battery v/Ah | 12V refers to one battery; 24V refers to two batteries (each with a capacity of 60AH) | ||||||
| Charger v/A | Optional 12V or 24V charger available | ||||||
| Lift motor | Communication AC v/Kw | 220/0.75 | |||||
| Direct current DC v/Kw | 24/0.8 | ||||||
| Overall machine length (mm) | 1180 | 1280 | 1280 | 1280 | 1360 | 1450 | |
| Machine width (mm) | 750 | 800 | 800 | 800 | 850 | 850 | |
| Overall machine height (mm) | 1650 | 1650 | 1650 | 1980 | 1980 | 1980 | |
| Total weight | Communication AC kg | 200 | 250 | 265 | 290 | 315 | 350 |
| Direct current DC kg | 240 | 290 | 305 | 330 | 355 | 390 | |
*The factory reserves the right to modify materials and technical parameters. Please confirm before placing an order.
