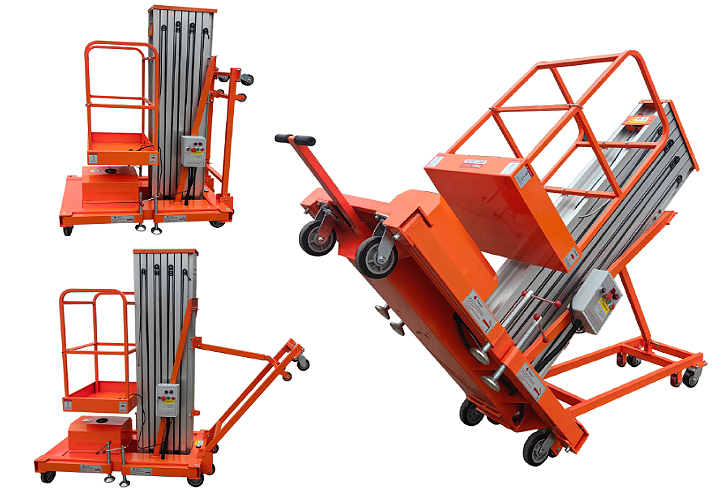

Single mast aluminum alloy lifting platform (flip)

Model		GTWY4-100	GTWY5-100	GTWY6-100	GTWY8-100	GTWY9-100	GTWY10-100
Maximum height of platform mm		4000	5000	6000	8000	9000	10000
Working height mm		5700	6700	7700	9700	10700	11700
Base to ground distance mm		80	80	80	80	80	80
Platform rated load kg		125-150	125-150	125-150	125-150	125	125
Work platform size mm		640×580
Leg extension size mm		1600×1700	1650×1750	1650×1750	1650×1750	1780×1900	2110×1920
Power supply	Communication AC V	AC220/50HZ
Power supply	Direct current DC V	Can be equipped with 12V or 24V batteries
Storage battery v/Ah		12V is one battery; 24V consists of two batteries (each with a capacity of 60AH)
Charger v/A		Can be equipped with a 12V or 24V charger
Lift motor	Communication AC v/Kw	220/0.75
Lift motor	Direct current DC v/Kw	24/0.8
Overall machine length (mm)		1380	1480	1480	1480	1560	1650
Machine width (mm)		750	800	800	800	850	850
Overall machine height (mm)		1650	1650	1650	1980	1980	1980
Total weight	Communication AC kg	250	300	315	340	365	400
Total weight	Direct current DC kg	290	340	355	380	405	440

*The factory reserves the right to modify materials and technical parameters. Please confirm before placing an order.
