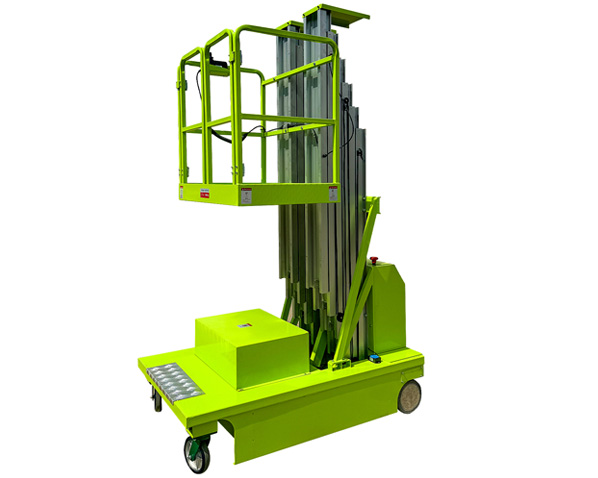

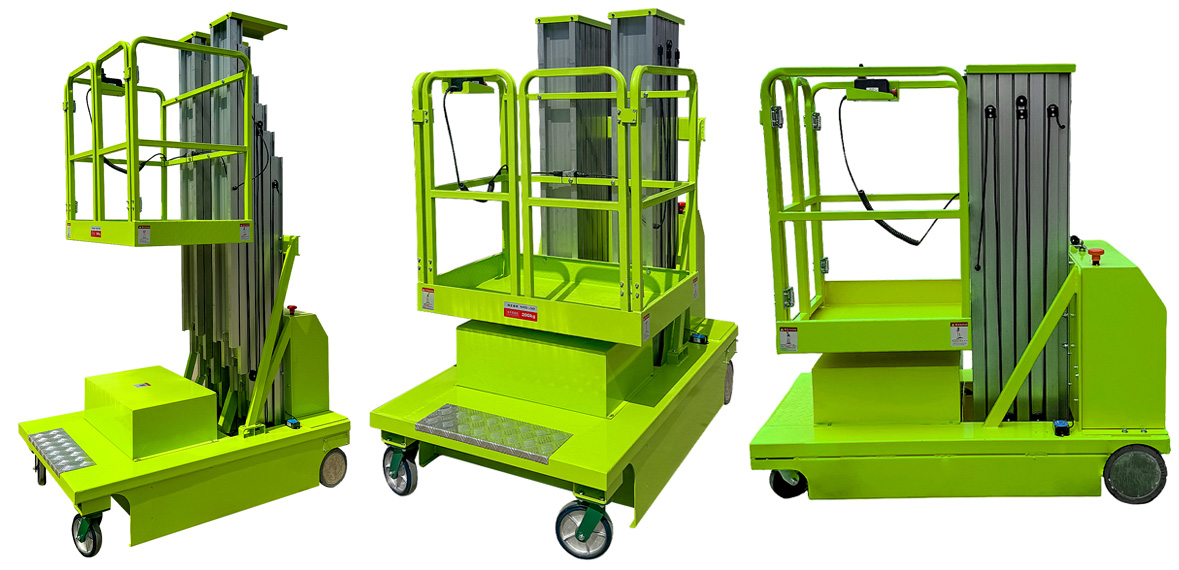

Fully self-propelled universal wheel aluminum alloy lifting platform

	GTWY4-100-WXL	GTWY5-100-WXL	GTWY6-100-WXL	GTWY4-200S-WXL	GTWY5-200S-WXL	GTWY6-200S-WXL
Load capacity kg	125	125	125	200	200	200
Platform height mm	4000	5000	6000	4000	5000	6000
Operating height mm	6000	7000	8000	6000	7000	8000
Work platform dimensions (length x width x height) mm	600*600	600*600	600*600	1000*600	1000*600	1000*600
Overall dimensions of the machine (length x width x height mm)	15307601750	15307601750	15307601750	170010001750	170010001750	170010001750
Minimum ground clearance mm	45	45	45	45	45	45
Front and rear wheelbase mm	1290	1290	1290	1460	1460	1460
Minimum turning radius mm	1530	1530	1530	1700	1700	1700
Lift motor/drive motor kw	0.8kw/0.5KW	0.8kw/0.5KW	0.8kw/0.5KW	1.2kw/0.5KW	1.2kw/0.5KW	1.2kw/0.5KW
Machine travel speed (folded state) km/h	3.5km/h	3.5km/h	3.5km/h	3.5km/h	3.5km/h	3.5km/h
Machine travel speed (raised state) km/h	0.8km/h	0.8km/h	0.8km/h	0.8km/h	0.8km/h	0.8km/h
Rising/falling speed in seconds	95/80	95/80	95/80	95/80	95/80	95/80
Storage battery	2*12v/100ah	2*12v/100ah	2*12v/100ah	2*12v/100ah	2*12v/100ah	2*12v/100ah
Charger	24v/10a	24v/10a	24v/10a	24v/10a	24v/10a	24v/10a
Maximum climbing ability%	25	25	25	25	25	25
Maximum allowable working angle (indoor/outdoor)	1.5°/1.5°	1.5°/1.5°	1.5°/1.5°	1.5°/1.5°	1.5°/1.5°	1.5°/1.5°
Tire mm	230×80	230×80	230×80	230×80	230×80	230×80
Machine weight kg	450	800	850	800	900	1000

*The factory reserves the right to modify materials and technical parameters. Please confirm before placing an order.
