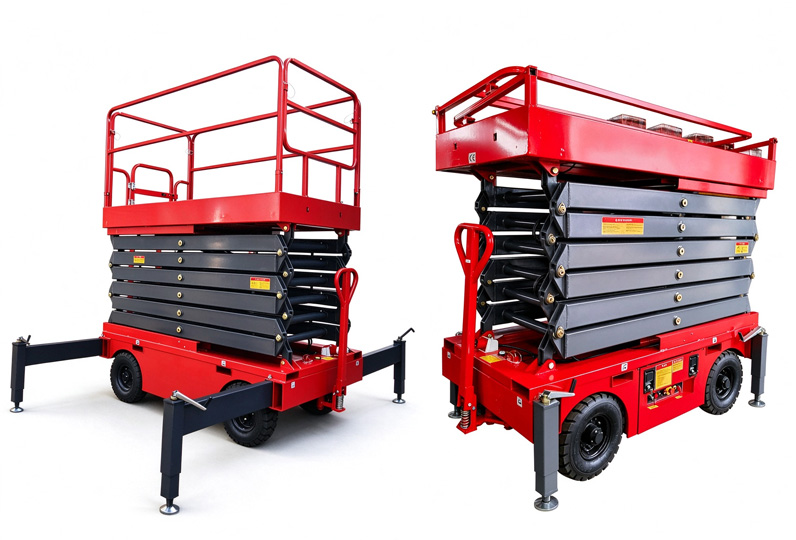

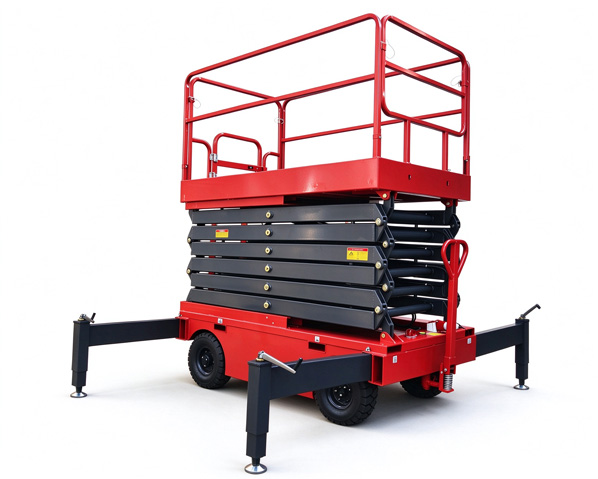

1、The material used for the body is solid: it is made of thickened materials according to national standards, and the weight of the whole machine is about 1.5 times heavier than that of peers with the same specifications, to prevent cutting corners.
2、Safe Pull Leg: Thickened pipe with safety locking pin, supporting anti rotation, easy operation, safer lifting.
3、Anti slip countertop+folding guardrail: 3mm anti slip patterned board, foldable guardrail, equipped with self rebound spring self-locking door to prevent the risk of falling from high altitude.
4、High strength manganese steel arm: National standard Q355B manganese steel rectangular tube, with better pipe specifications and wall thickness than competitors of the same height, and a stable structure.
5、Drawer style electronic control chassis: hydraulic and electronic control system integrated inside the drawer, safe and convenient for maintenance; Integrated panel, beautiful and easy to operate.
6、Durable cable and control box: the UP anti-aging cable is not easy to break in tension, and the table top button box is anti smashing and waterproof.
7、Electric control double insurance: dual contactors+dual stroke switch, equipped with manual emergency descent device, can safely land in case of circuit failure.
| Product Model | Work platform size (mm) | Maximum height of platform (mm) | Rated load of the platform (kg) | Whole machine weight (kg) | Dimensions (mm) | Power (kW) | Power supply (V) |
| SJY0.5-6 | 1780×840 | 6000 | 500 | 760 | 1930×950×1660 | 1.5 | 220/358 |
| SJY0.5-7.5 | 2000×1000 | 7500 | 500 | 1350 | 2190×1220×1850 | 1.5 | 220/358 |
| SJY0.5-9 | 2000×1000 | 9000 | 500 | 1500 | 2190×1220×1960 | 2.2 | 220/358 |
| SJY0.5-11 | 2100×1000 | 11000 | 500 | 1720 | 2340×1220×1960 | 2.2 | 220/358 |
| SJY0.5-12 | 2400×1350 | 12000 | 500 | 2400 | 2640×1580×2110 | 3 | 380 |
| SJY0.5-14 | 2600×1350 | 14000 | 500 | 2800 | 2850×1580×2250 | 4 | 380 |
| SJY0.5-16 | 3100×1400 | 16000 | 500 | 3500 | 3280×1660×2250 | 4 | 380 |
| SJY0.3-18 | 3100×1500 | 18000 | 300 | 4100 | 3350×1740×2550 | 4 | 380 |
| SJY1-4.5 | 1780×840 | 4500 | 1000 | 1000 | 1930×950×1560 | 1.5 | 380 |
| SJY1-6 | 1780×1000 | 6000 | 1000 | 1300 | 2040×1250×1760 | 2.2 | 380 |
| SJY1-9 | 2100×1000 | 9000 | 1000 | 1900 | 2370×1220×1950 | 4 | 380 |
| SJY1-11 | 2300×1350 | 11000 | 1000 | 2850 | 2560×1580×2140 | 4 | 380 |
| SJY1-12 | 2400×1350 | 12000 | 1000 | 3000 | 2660×1580×2250 | 4 | 380 |
| SJY1-14 | 2700×1500 | 14000 | 1000 | 3500 | 3000×1730×2300 | 4 | 380 |
| SJY1-16 | 3100×1500 | 16000 | 1000 | 4000 | 3350×1740×2350 | 4 | 380 |
*The factory reserves the right to modify materials and technical parameters. Please confirm before placing an order.
