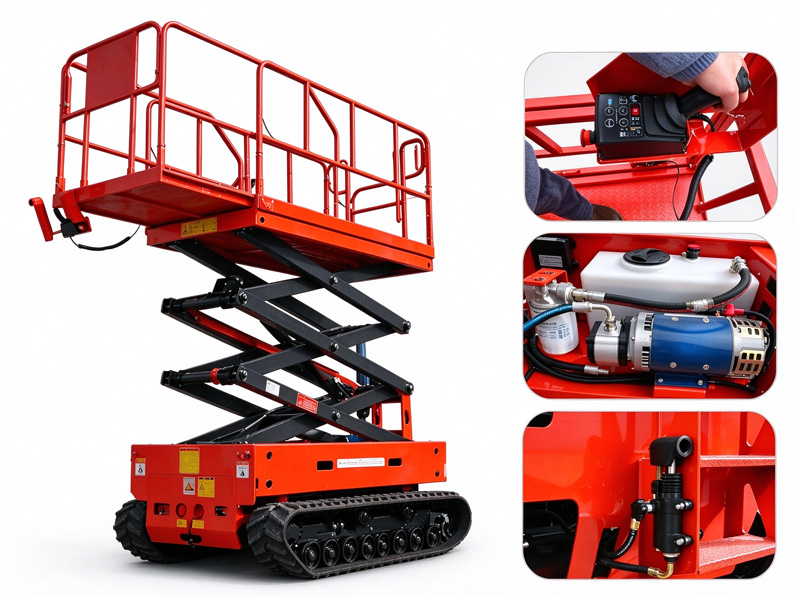

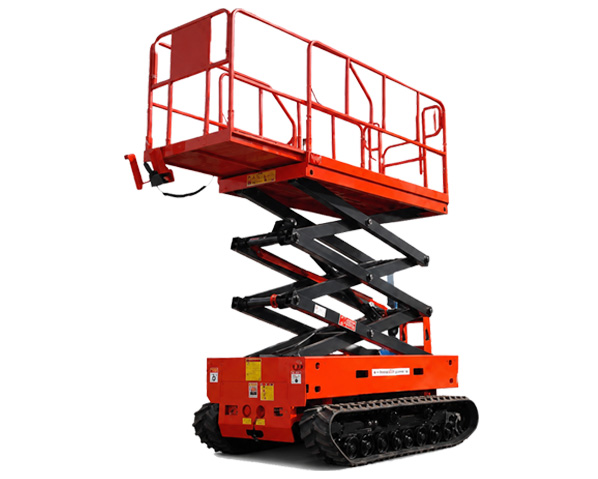

Crawler type fully self-propelled lifting platform

Product Model	GTJZ0.3-6	GTJZ0.3-8	GTJZ0.3-10	GTJZ0.3-12
Safe working load (kg)	500	500	500	320
Extended platform safe working load (kg)	113	113	113	113
Maximum working height (m)	8	10	12	14
Maximum platform height (m)	6	8	10	11.8
Dimensions of the work platform (length x width x height, m)	2.3×1.17×1.1	2.3×1.17×1.1	2.3×1.17×1.1	2.3×1.17×1.1
Overall dimensions of the machine (length x width x height, folded guardrail, m)	2.7×1.65×1.7	2.7×1.65×1.82	2.7×1.65×1.94	2.7×1.65×2.06
Overall dimensions of the machine (length x width x height, unfolded guardrail, m)	2.7×1.65×2.35	2.7×1.65×2.47	2.7×1.65×2.64	2.7×1.65×2.74
Platform extension size	0.9	0.9	0.9	0.9
Minimum ground clearance (collapsed state, m)	0.1	0.1	0.1	0.1
Minimum ground clearance (collapsed state, m)	0.19	0.19	0.19	0.19
Wheelbase (m)	2.22	2.22	2.22	2.22
Minimum turning radius (inner/outer wheel, m)	0／2.2	0／2.2	0／2.2	0／2.2
Lift motor/drive motor (V/kW)	48V／4.5kW	48V／4.5kW	48V／4.5kW	48V／4.5kW
Machine travel speed (folded state, km/h)	1.8	1.8	1.8	1.8
Machine travel speed (folded state, km/h)	0	0	0	0
Rising/falling speed (seconds)	80／30	80／30	80／30	80／30
Battery (V/Ah)	8×6V／256Ah	8×6V／256Ah	8×6V／256Ah	8×6V／256Ah
Charger (V/A)	48V／30A	48V／30A	48V／30A	48V／30A
Maximum climbing ability (%)	25	25	25	25
Maximum allowable working angle (indoor/outdoor, °)	1.5／3	1.5／3	1.5／3	1.5／3
Tire	Steel track	Steel track	Steel track	Steel track
Whole machine weight (kg)	2600	2800	3000	3200

*The factory reserves the right to modify materials and technical parameters. Please confirm before placing an order.
