Mobile unloading platformCategory:Unloading platform

Product Introduction:A mobile unloading platform is a mechanical equipment that achieves efficient loading and unloading of goods through lifting and adjustment, and is widely used in logistics, ports, and other fields
.Lifting height: 1700mm
.Power: 4kw
.Self weight: 1200KG

Product description

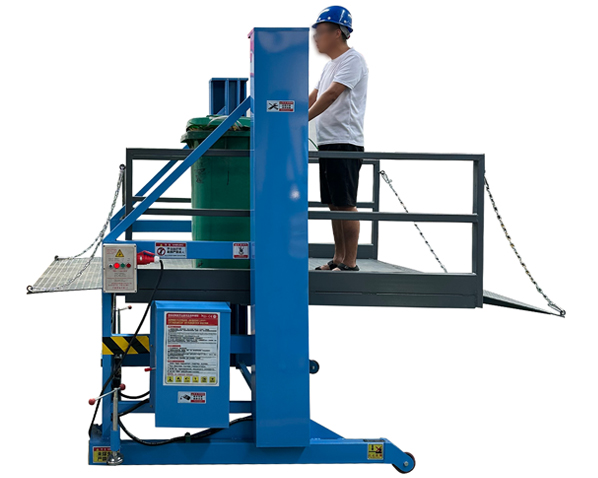

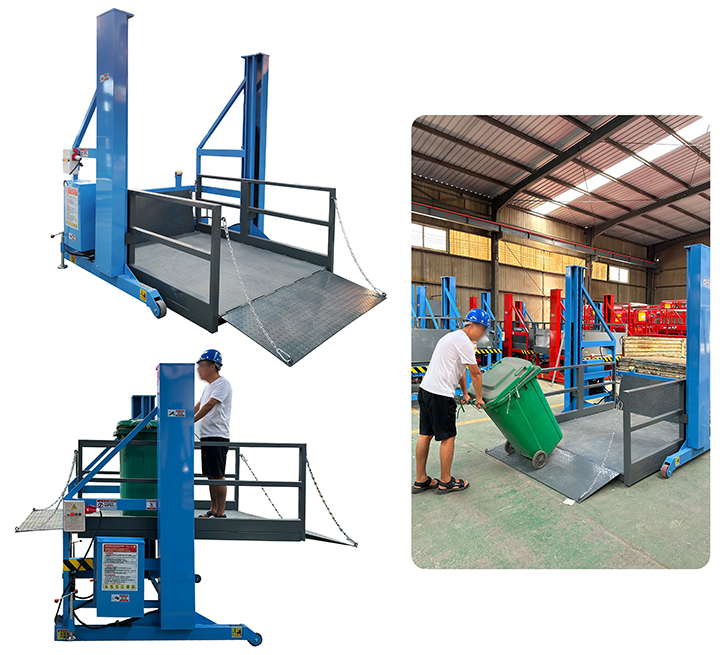

Mobile unloading platform

Product ModelXHPT-2TXHPT-2TXHPT-3TXHPT-3TXHPT-3TXHPT-3T
Table size mm1600*2000mm2000*2000mm1600*2000mm2000*2000mm1600*2600mm2000*2600mm
Lifting height mm1700mm1700mm1700mm1700mm1700mm1700mm
Load capacity kg2000KG2000KG3000KG3000KG3000KG3000KG
Pattern board mm4.5mm patterned whole board4.5mm patterned whole board4.5mm patterned whole board4.5mm patterned whole board4.5mm patterned whole board4.5mm patterned whole board
Powerkw2.2kw/3kw2.2kw/3kw4kw4kw4kw4kw
Power supply v220V/380V220V/380V380V380V380V380V
Self-respect kg718KG800KG988KG1060KG1008KG1200KG
Overall dimensions mm2260*2300*25002660*2300*25002480*2300*25002880*2300*25002480*2900*25002880*2900*2500
